Knife Gate Valve

What exactly is a knife gate valve?

Knife gate valves are primarily intended for on-off and isolation services in systems with a high precipitated density. A knife gate valve is particularly useful for managing slurry, as well as viscous, abrasive, as well as corrosive media. The valves feature a little pressure drop in the completely open position, are simple to use, light in weight, and cost-effective.

How Does a Knife Gate Valve Function?

Knife gate valves are very successful in applications involving viscous fluids, slurry, and other impingement-prone systems.

Knife gate valves are widely employed in modern processing facilities and are available in considerable sizes to handle thick flows of light grease, heavy oils, varnish, slurry, wastewater, and paper pulp. It should be noted that these valves have low-pressure limits and are intended to seat the blade into an elastomer seal after the blade has cut through the substances being handled.

While viscous liquids can simply flow over the soft seals at the end of the knife gate, solid masses or powders tend to pack into the seals because they are too bulky and dry to pass through the gate easily. When this occurs, the seals will ultimately fail to shut securely enough. If this occurs, the seals must be changed.

Knife Gate Valve categorization.

1. By Body Material.

• There is a wide selection of hardware that may be used to make knife gate valves. The terms "cast carbon steel," "cast iron," "ductile iron," "gunmetal," "nickel," "alloy steels," "stainless steel," and "forged steels" all refer to typical types of materials that are used. The material used in gate valves is chosen mostly by the fluid service and the temperature of the f designs.
• The knife gate valve constructed from carbon steel is made of a durable material that has excellent levels of hardness, tensile strength, and impact value. Operations that need high temperatures and/or pressures are often carried out in industrial facilities using it.
• The stainless steel knife gate valve offers increased corrosion resistance, heat resistance, low-temperature resistance, and mechanical strength despite its high cost.
• Lined valves offer high mechanical qualities and are thermally stable, chemically robust, and resistant to corrosion by design. Because of its improved workability, it can supply valve wet parts with fine lining without worrying about pinholes. This is a significant advantage. Because it is colorless and does not call for the addition of any chemicals or colors, it is also suggested for use in the preparation of food.

2. Depending on the Type of Connection

The requirement and suitability of the valve are the primary factors that determine the end connection of the valve. For example, wafer-type knife gate valves and lug-type knife gate valves are utilized with less expensive valves, flanged-type ends are the most common of all kinds, and a gasket is used for sealing.

3. Using the procedure of sealing. Metal seat/ Resilient seat

• Before the metal-seated knife gate valve was replaced by the resilient seated knife gate valve, it was the more frequent kind of gate valve to have a metal seat. A metal-seated wedge must have a dip at the bottom of the valve to accommodate its conical wedge design and angular sealing mechanisms. This is necessary to achieve secure closure. There are still grains of sand and stones stuck in the bore. It does not matter how thoroughly the pipe is flushed throughout the installation or maintenance process; the pipe system will never be completely clean of all contaminants. Any metal wedge would eventually lose its capacity to be drop-tight as a consequence of this, of course.
• Sand and pebbles can move unhindered through a resiliently seated knife gate valve because the bottom of the valve is kept intentionally uncomplicated. If pollutants are allowed to travel through the valve while it is being closed, the rubber surface may contract to enclose the impurities. A high-quality rubber compound will have impurities in it when the valve is closed, but these impurities will be removed when the valve is opened again. A watertight seal would be maintained as a result of the rubber surface returning to its previous form.

4. By stem Structure. Rising stem/Non-rising stem

• Knife gate valves have a threaded valve stem that links the actuator (manual or motor) to the gate. This stem is responsible for controlling the valve. According to whether or not the other end of the stem has threading, we classify them as rising or non-rising stems.
• A visible signal of the position of the valve is provided by rising stems that are connected to the gate and rise and lower concurrently when the valve is actuated. To raise or lower the threaded stem, the actuator looks like a nut and spins around it.
• The non-rising stem valves have threads at the end of the gate, and they are coupled to the actuator so that they may spin together. They often come with a pointer that is attached to the top end of the stem to illustrate the position of the valve. This is done since the motion of the gate is disguised inside the valve itself. Underground or in other locations with a restricted amount of vertical space, non-rising stems are used.

When would you utilize a knife gate valve?

Knife gate valves can withstand extreme conditions and their sharp blade can easily cut through thick liquids.

When dealing with corrosion, as is often the case in wastewater applications, they come in very handy. Therefore, having a knife made of acid-proof stainless steel is preferable in addition to having a valve design designed for slurry medium since it makes the knife less vulnerable to damages caused by corrosion and, therefore, needs less frequent maintenance or even replacement.

If a knife gate valve is not specifically intended to control flow, it should only be utilized for applications that call for either a fully open or fully closed state. Fluid pressure against a partly closed gate causes vibration, which wears away at the disc and seat over time. Additionally, the knife gate valves are built to open and shut gradually, protecting against water hammer blows.

Can you explain the difference between knife gate valves and regular gate valves?

On-off services, in which the valve is either fully open or closed, are best served by wedge-type gate valves and knife gate valves. For the same reason, that fluid pushing against a partly closed gate causes vibration and cavitation, none of these should be used to control flow. Additionally, water hammer is avoided since both valve types open and shut gradually.

• Both are suitable for use with a wide variety of slurries, heavy oils, and incombustible viscous fluids.
• Water for reuse Water that may be used directly
• To effectively cut through slurries and other viscous media, knife gate valves include a sharper disc in comparison to standard gate valves. In addition to being narrower than a gate valve, the face-to-face length of a knife gate valve is shorter. Since it doesn't need as much material to operate, a knife gate valve is more portable than a conventional gate valve. These are the key variations and two of the most significant benefits of the knife gate valve.
• For example, knife gate valves are often used in wastewater treatment facilities, chemical plants, mining facilities, and cement plants, whereas gate valves are more commonly used in drinking water mains, distribution networks, and pump stations.

GMK Knife Gate Valves

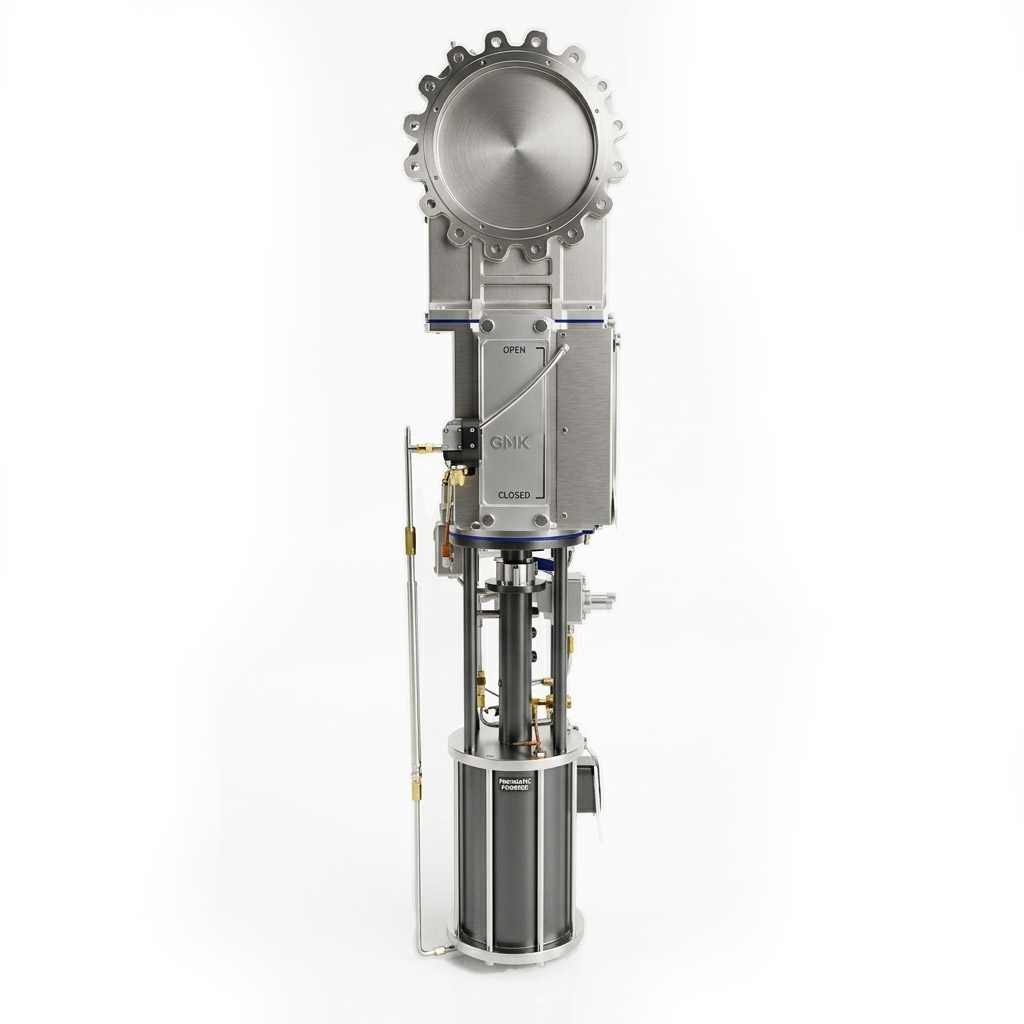

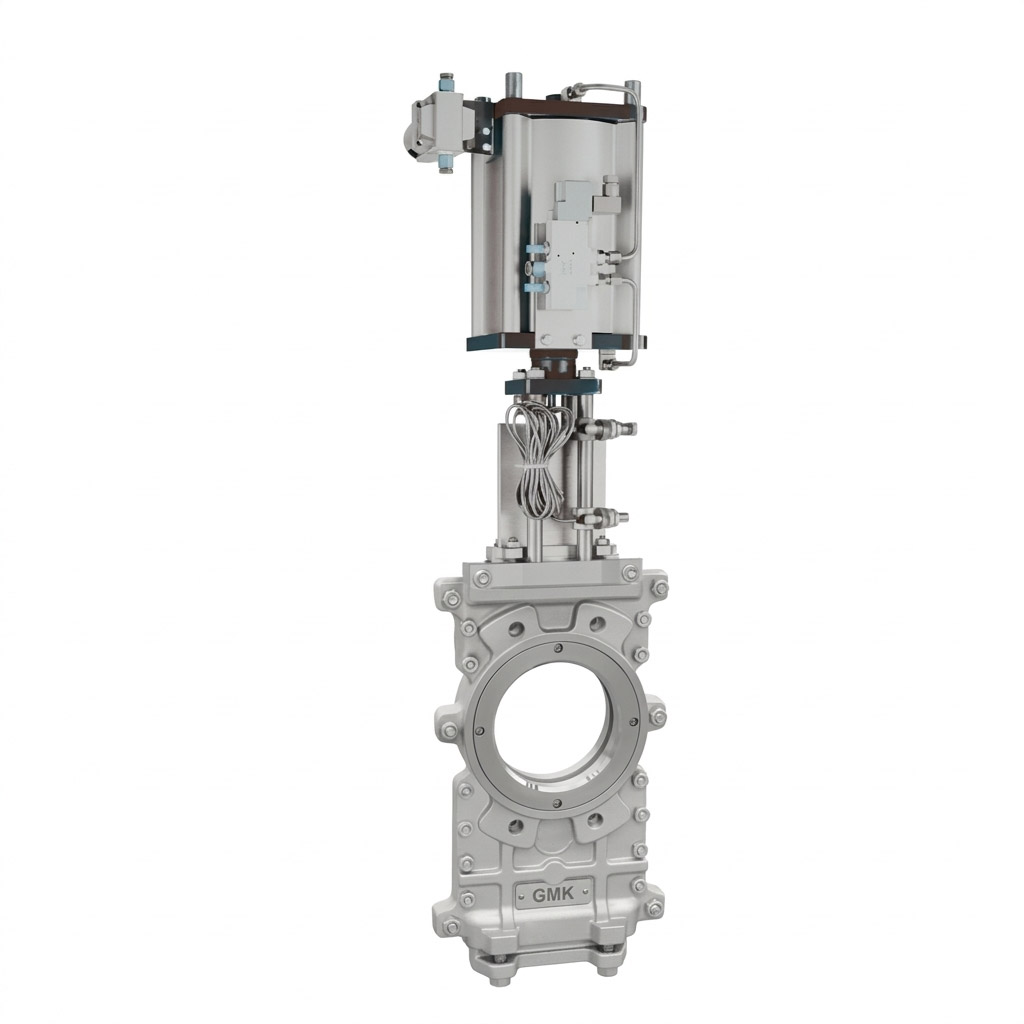

The GMK Non-Rising stem knife gate valve is made using a combined valve body casting process. The u-shaped rubber seal, which is covered with side slots in the valve body, must be properly sealed to the surface of the gate for the valve to fulfill zero leakage standards. The GMK line of knife gate valves is known for its lightweight construction and high-quality closing performance. Easy to open and close, the valve needs minimal physical effort. When it comes to slag flow and overall size, GMK cast steel knife gate valves are unmatched. We guarantee that every single one of our valves will function perfectly every single time it is used.

Conclusion

When it comes to gate valves, GMK is quickly becoming the industry standard. Our GMK knife gate valve requires the removal of a panel with a flat, or "knife," edge from the path of circulation. When the valve is closed, this edge may be able to slice through several potential obstructions, allowing for a clean break when compared to the valve body's inherent pliability. This soft sealing surface can only be utilized in low-pressure situations since it was not designed to sustain high pressure. More force than its design allows for is not supported. Like GMK knife gate valves, they are often not designed for throttling or partial uses, but rather for on/off or isolating actions.
